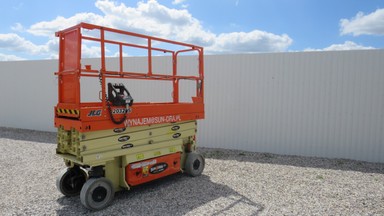

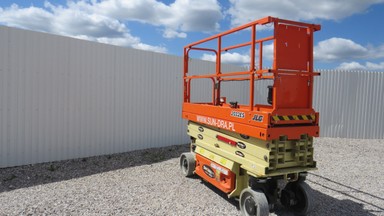

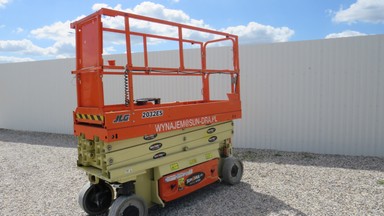

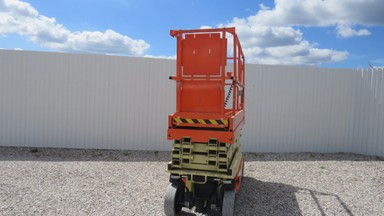

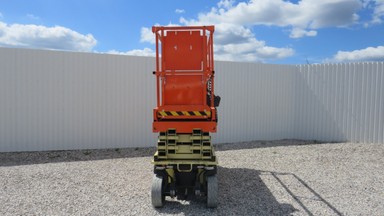

| Additional Information | Machine Type: Scissor Lift
Make: JLG 2032ES
Year of Manufacture: 2021

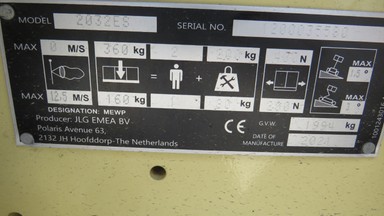

Serial Number: 1200035580

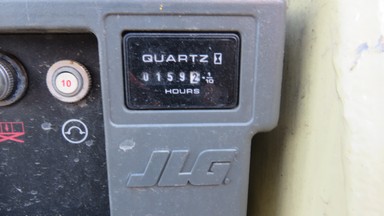

Operating Hours: 159
Manufacturer: JLG EMEA BV Polarisavenue 63, 2132 JH Hoofddorp, Netherlands
Machine specifications:
Platform height - raised 6,000 mm
Platform height - folded 1,100 mm
Working height 7,900 mm
Total machine height in the folded position 2,200 mm / 1,800 mm
(rails extended / folded)
Total machine width 810 mm
Overall machine length: 2,300 mm / 3,200 mm
(deck retracted / extended)
Platform length: 2,300 mm
Platform width: 800 mm
Platform extension length: 900 mm
Wheelbase: 1,880 mm
Travel speed: 4.4 km/h
Outside turning radius: 2,060 mm
Maximum grade: 1.5 / 3°
Load capacity: 360 kg
Gross weight: 2,004 kg
Next UDT inspection date: September 2025
Drive motor: SEPEX 24V DC
Power: 0.65 HP at 3,750 rpm
Hydraulic pump assembly: 24 V DC, 3 kW
The machine's visual condition is good.
There are numerous operational damages visible throughout the machine, resulting from the nature and intensity of use.
The deck, handrails, moving parts of the lift, and bottom covers are scratched.
The electric motor has been started and is operating correctly.
A test of the running and working parts of the scissor lift was performed under visual inspection conditions (without load).
No oil leaks were detected from the hydraulic system.
The visual condition of the lift's hydraulic cylinder piston rods is satisfactory.
The machine is partially covered with company advertising.
TECHNICAL DESCRIPTION
Operator's station - standing,
Basic equipment - complete
Engine - electric
Hydraulic systems
(pump, hoses, actuators) - no comments
Paintwork - orange with signs of mechanical damage

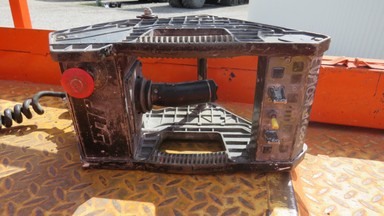

Dashboard - complete
Fluid leaks - none noted
Machine repair and maintenance - not presented

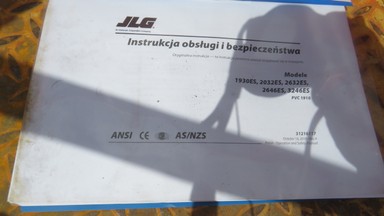

Machine identification documents - presented
Machine mileage documents - not presented
Unit operation test without load - performed
Basic components:
ENGINE
Engine and accessories without visible defects or mechanical damage.
Engine started - engine operation is satisfactory.
CHASSIS
Chassis components are complete with no visible defects.
Numerous operational damages – scratches, corrosion spots on the lower part of the machine body. Solid cast tires.
B O D Y
The body is orange with signs of mechanical damage from use.
The body is partially covered with company advertising.
The following damage was found:

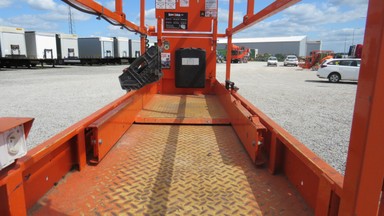

- platform – scratched, with corrosion,
- lower housings – scratched.
EQUIPMENT
One ignition key was presented for inspection.
The machine is equipped with:
- safety barriers,
- self-closing entrance gate,
- overload sensor,
- STOP button,
- tilt detection system,
- sound and light signals.
- cast tires (solid),
- electric drive. |
