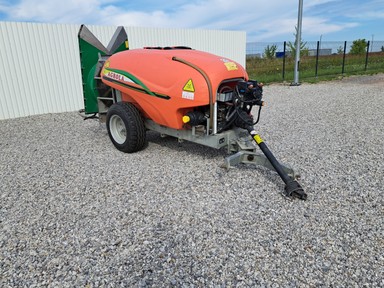

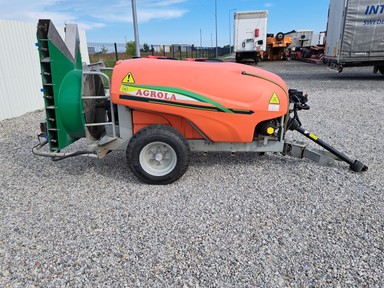

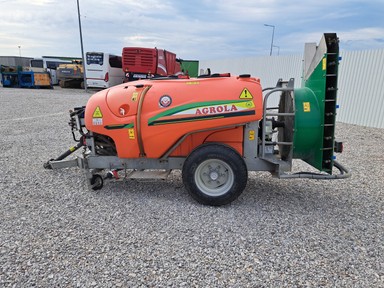

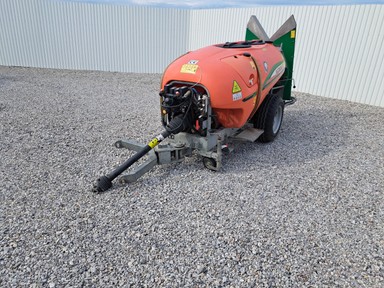

| Additional Information | Brand, model: AGROLA 1000 K6 (P 161/2)
Type of equipment: Sprayer
Serial number: 21120
Year of manufacture: 2021
Mileage: No odometer
Technical specifications of the quoted item:
Tank assembly
• Main tank capacity: 1000 l
• Material/layout: polyethylene, three-piece (main tank + sprayer rinsing water + handwashing water).

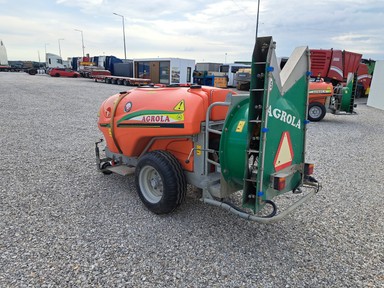

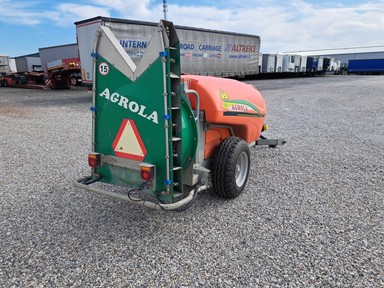

Fan attachment (K6)
• Type: axial, reverse draft, deflector column, Ø 800 mm
• Max. air flow rate: 30,000 m³/h
• Gear ratios: 2 + N
• Spraying range: up to 3 m vertically / up to 5 m horizontally.
Liquid pump
• Standard: Annovi&Reverberi AR1203 – 116 l/min, max. 50 bar
• Max. permissible pressure in the sprayer liquid system: 20 bar.
Spraying System
• Brass spray heads with anti-drip valve.
• Number of spray heads: 2×6 (6 per side).
• Standard version – multi-nozzle spray heads (2 nozzles); in the "economic spraying" variant – single nozzles.
Body and Hitch
• Hot-dip galvanized steel frame.

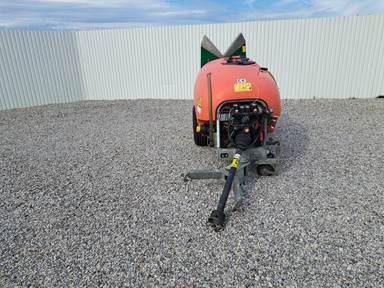

• Hitch: straight drawbar (optional: steerable drawbar).
Wheels
• Standard: 10.0/75-15.3;
Electrical System

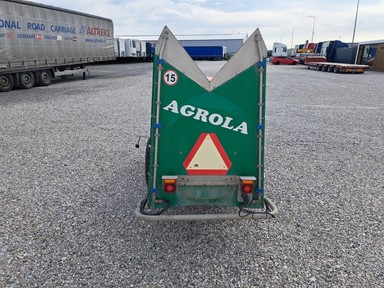

• LED Road Lighting
Operating Parameters (selected)
• Max. PTO speed: 540 rpm
• Max. transport speed: 15 km/h
• Power requirement (for 1000 K6): 30–40 HP.
Dimensions and weights (1000 K6)
• Length: 3870 mm
• Width: min. 1260 mm
• Height: approx. 1910–2030 mm (depending on tires/equipment)
• Curb weight: 640 kg
• Gross weight: 1700 kg
Controls/equipment
• ARAG solenoid valves (no control panel)
• PTO shaft,
• Steering drawbar.
Technical Condition Description

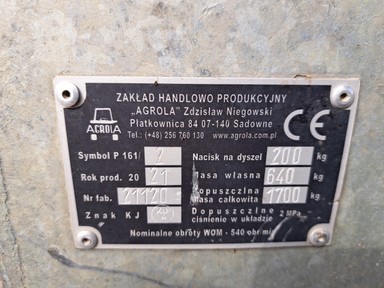

Nameplate:
- Location – frame behind the drawbar,
- Tampering/irregularities – none.
Identification Number Stamped:
- Location – not located,
- Tampering/irregularities – none.
Technical Documentation:
- User Manual – No,
- Parts Catalog – No,
- Technical Specifications – none,
CE/EC Certificate:
- Marking – Yes,
- Declaration/Certificate of Conformity – No.
Operation History:
- Service Documentation – No.
- Periodic Inspection Markings – none.
Year of Manufacture:
- 2021 – determined based on permanently applied markings on the factory nameplate.
Technical condition:
- Visual condition: good, minor mechanical damage throughout.
- Wear: unverifiable - the device has not been tested in operation.
- Operating system: no operational test of the operating units has been performed. Ball valve handles are corroded, plastic handle covers are cracked; traces of temporary seals on the liquid lines are present - silicone; drain valve is broken, temporarily attached.
- Liquid pump: no visible defects, oil level: minimum.
- Controls: the sprayer is equipped with ARAG solenoid valves controlling the liquid for use with a manual control panel - the control panel is missing.
- Chassis: complete chassis components with no visible defects, minor mechanical damage, rear protection beam is scratched with corrosion, bent.
- Electrical system: rear light power cable is partially broken. - Tires – BKT IMPLEMENT -AW909 10.0/75-15.3 – wear 30% |
